High frequency welding fin tube

Product Categary:

High Frequenvy Welded Finned T

Main Feature:

Jiangsu Haohua Industry Group as one of the leading suppliers in China to supply High frequency welding fin tube etc.(Contact person:Ms Leilei ; Email: Leilei@haopipe.com)

product description

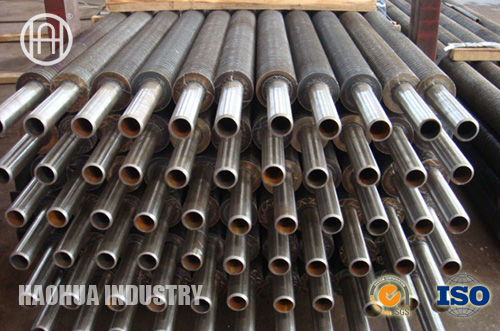

High frequency welding fin tube

1.Technical Details
FIN Details
Fins Thickness : 0.015",0.02",0.03",etc.
Fins Height : 3/8" to 1 1/2"
Fin Density : Min 43 Fins Per Meter To Max. 287 Fins Per Meter (depending On The Fin Density –FPM, And Fin Thickness)
Material : Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel And Incolloy. (Any Ferrous Material)
TUBE Details
Tube Diameter : 3/4" to 4"
Tube Thickness : Min 0.1"
Tube Mateial : Carbon Steel, Stainless Steel, Alloy Steel ,duplex Steel, Super Duplex Steel, Inconel, High Chrome High Nickle & Incolloy (Any Ferrous Material),and some other material.

2.Production Technique & Applications
High frequency welded spiral finned tube is one of the most widely used finned tubes. It is a plain type fin, made by helically winding the fin strip on edge around the tube. The fin is continuously welded to the tube by a high frequency electrical resistance welding process which leaves the tube essentially unchanged metallurgically. The width of the weld is always greater than 90 percent of the thickness of the fin, assuring a strong bond between the fin and the tube for efficient heat transfer and long life. Solid fins are preferred in fouling applications. The finished finned tube is extremely strong mechanically and has greater resistance to bursting pressure than the bare tube due to the reinforcing effect of the fin. Because of its excellent strength and resistance to deformation, this tubes are well suited for applications where severe abuse is expected in service.
Our Welded Helical finned tubes consist of steel fins wrapped helically around steel pipe, and continuously welded using the GMAW process. The fins may be either solid or serrated.
For Welded Helical Solid and Welded Helical Serrated finned tubes, the fin and tube materials can be any combination that can be welded together using the GMAW (gas-metal-arc-welding) process.
For Welded Longitudinal finned tubes, the fin and tube materials can be any combination that can be resistance welded together.


3. Packing,Shipping and others
Packing :To be packed in wooden crate
Marking:Each box to be legibly marked with the name of the manufacturer or supplier, the designation of material,condition,dimensions and weight
Shipping tools :Ship goods by van to departune port then by sea or air to desitination port
