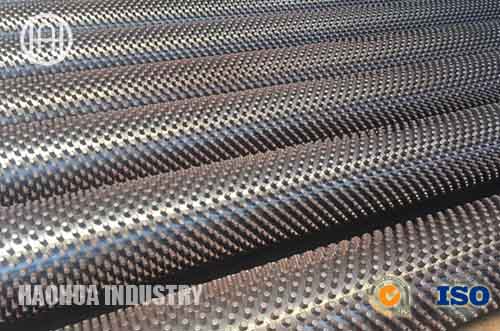

SA312 Heat Exchanger Finned

Product Categary:

STUDDED TUBES

Main Feature:

Detailed Product Description MATERIAL: TP304TP304LTP316LTP317L OD: 20mm OD Min To 219mm OD Max. WT: Minimum 2mm Up To 16mm Titanium: Gr. 2Gr.7GR.12 Aluminum: Alu.1100Alu.1060 TYPE: Extruded Fin Studded High Light: extruded finned tub

product description

Detailed Product Description
MATERIAL: TP304,TP304L,TP316L,TP317L OD: 20mm OD Min To 219mm OD Max.
WT: Minimum 2mm Up To 16mm Titanium: Gr. 2,Gr.7,GR.12
Aluminum: Alu.1100,Alu.1060 TYPE: Extruded Fin ,Studded
High Light:

extruded finned tube

heat exchanger fin tube





ASTM A312 Heat Exchanger Fin Tube TP317L/ 304L / TP316L Spiral Extruded,Studded,11Cr

HFW Solid Finned Tube

This welded steel finned tube configuration can be used for any practically heat exchanger application, and is particularly suited to high temperature and high pressure applications. The important features of this configuration are efficient, effective bond of fin to tube under all conditions of temperature and pressure, and ability to withstand high fin-side temperatures.



A continuous helical fin is attached to the base tube by high frequency electric resistance welding in order to give an efficient and thermally reliable bond.



Technical Details/Base Tube Details

Tube Diameter : 20 mm OD Min to 219 mm OD Max.

Tube Thickness : Minimum 2 mm up to 16mm

Tube Material : Carbon Steel, Stainless Steel, Alloy Steel, Corten steel, duplex Steel, Super Duplex Steel, Inconel, High Chrome High Nickle & Incolloy, CK 20 material and some other material.



Fin Details

Fins Thickness : Min. 0.8 mm to Max. 4 mm

Fins Height : Min 0.25” (6.35 mm) To Max.1.5” (38 mm)

Fin Density : Min 43 Fins Per Meter To Max. 287 Fins Per Meter

Material : Carbon Steel, Stainless Steel, Alloy Steel, Corten steel, Duplex Steel and Incolloy.
