Cold-finishing Tubes A192/192M Carbon Steel

Product Categary:

Seamless High Pressure Boiler

Main Feature:

Jiangsu Haohua Industry Group as one of the leading suppliers in China to supply Cold-finishing Tubes A192/192M Carbon Steel. Contact Person: Mr.Tony Email:Tony@haopipe.com QQ:1739882203 Whatsapp:+8618051856560

product description

Cold-finishing Tubes A192/192M Carbon Steel



ASTM A192 belongs to the carbon seamless tubes, which is specially designed for
high, middle, low pressure purpose in seamless carbon steel boilers and as super
heater tubes.

1. ASTM A192 —– American Society for Testing Materials standard
2. ASME SA192 —- American Society of Mechanical Engineers standards
This guide covers standard specifications for minimum-wall-thickness, seamless carbon steel boiler and
superheater tubes for high-pressure service. The steel shall conform to the required chemical composition
for carbon, manganese, phosphorus, sulfur, and silicon. The tubes shall have a hardness number not
exceeding a specific value. The following mechanical tests shall be conducted, namely: flattening test;
flaring test; hardness test; and hydrostatic test.
This abstract is a brief summary of the referenced standard. It is informational only and not an official part
of the standard; the full text of the standard itself must be referred to for its use and application. ASTM does
not give any warranty express or implied or make any representation that the contents of this abstract are
accurate, complete or up to date.

Note:
Mill test certificates will be issued according to EN10204.3
All tubes shall be supplied as per applicable ASTM Specification.
The tubes Shall be Seamless and the testing shall be as per A 450 / A450M.
Application: apply to the heat exchangers, condensers and heat transfer equipment and similar pipe

Marking:
Pipes are supplied with marking according to standard and customer request.
Marking is paint on the ends of pipes.
The same data, as well as additional information per customer’s request, is indicated on the bundle’s tags.

Delivery:

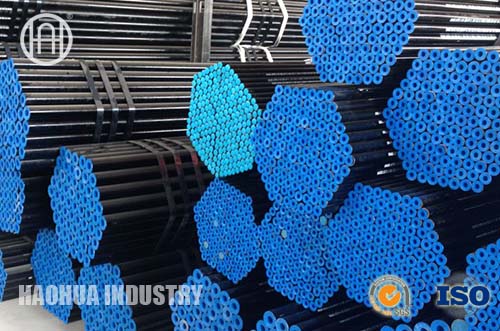

Pipes are supplied in hexagonal bundles or round bundles tied with steel strip.
Weight of bundle – up to 5000 kg upon request of customer.
Each bundle is furnished with three tags.
