Carbon steel tubesheet SA105N /SA266

Product Categary:

Tubesheets

Main Feature:

Carbon steel tubesheet SA105N /SA266 A tube sheet is a plate sheet or bulkhead which is perforated with a pattern of holes designed to accept pipes or tubes. These sheets are used to support and isolate tubes in heat exchangers and boiler

product description

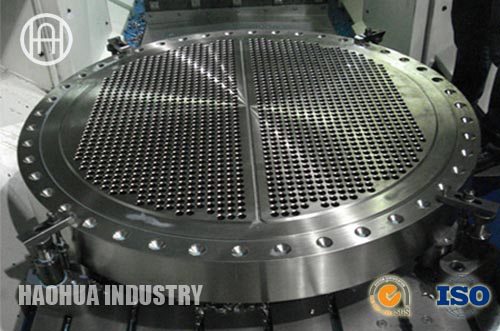

Carbon steel tubesheet SA105N /SA266

A tube sheet is a plate, sheet, or bulkhead which is perforated with a pattern of holes designed to accept pipes or tubes. These sheets are used to support and isolate tubes in heat exchangers and boilers or to support filter elements. Depending on the application, a tube sheet may be made of various metals or of resin composites or plastic. A sheet tube may be covered in a cladding material which serves as a corrosion barrier and insulator and may also be fitted with a galvanic anode. Tube sheets may be used in pairs in heat exchange applications or singularly when supporting elements in a filter.

Perhaps the best known use of tube sheets are as supporting elements in heat exchangers and boilers. These devices consist of a dense arrangement of thin walled tubes situated inside an enclosed, tubular shell. Tubes are supported on either end by sheets which are drilled in a predetermined pattern to allow the tube ends to pass through the sheet. The ends of the tubes which penetrate the tube sheet are expanded to lock them in place and form a seal.

Tubesheet are finished by CNC drilled, chamfer, grooved etc as per drawings' requirements.

Tube holes can be drilled and reamed and can be machined with one or more grooves. This greatly increases the strength of the tube joint.



Product

Tube Sheet

Synonyms

Tube plate,tube disk,clad tube sheet,tube sheet plate

Quality standard

Produced strictly according to national standard and customer’s drawing.

Material

Alloy steel,carbon steel, copper steel

Range

Diameter350mm~2000mm

Thickness45mm~650mm

Weight200kg~6000kg

Connection type

welding

Features of our products

High pressure resistant,high temperature resistant, corrosive resistant, acid and alkali resistant,

long service life, sofisticated technology surface treatment , well-formed, good performances.

Reasonable price, solid package, excellent after-sale service.

Production technology

High precision CNC lathe cutting machine, drilling machine, argon-arc welding

Nominal pressure

Various kinds of pressure standard

Flanges

GB, ANSI, JIS,API, DIN,BS.,etc

Material

Various kinds of material cutting and processing

Application

Widely used for pipe,heat exchanger,boiler,pressure vessels

Packing

Wooden box ,wooden pallet or as request

Price

Negotiable
